Post Thu Feb 24, 2011 10:01 pm

project crew cab daily

ok guys im starting a new project its been built before and im sure will be built again but props go to dave avtekk for the original build...

im building a crew cab long bed s10 but this is going to be my daily driver with just a static drop

i started with a long bed s10 i got and cut the frame off n junked the rest

then i already had a standard cab short bed frame so i cut the frame off that at the rear body mounts and now im fitting them both together theres about a 3 ft gap between the 2 frames so ill be using 2x4 square tube (unless they make 2x5 ill be calling tomorrow) to stretch the frame then will be plating and boxing the frame with 1/8 in plate i have

i bought the crew cab from a local junk yard yesterday and i have the rear doors coming from another local yard next week sometime

the rest of the truck will be built by using a complete donor truck for the drive train harness's front clip and other parts

planning on having the truck done by late spring early summer depending on how often u work on it

will be using 2 inch spindles and 3 in leafs from my current dd for now to see how low that is with a chance of 1 in coils and 1 in blocks afterwards (lil worried about ground clearance with that long of a frame)

will also be using a zq8 steering box front n rear zq8 sway bars from my current dd

the truck is going to be a daily driver not a show truck no bags no truck paint job just a basic single stage white paint maybe some nice wheels and just a realiable nice daily that i can throw ppl in and throw stuff in the bed

o yea and most likely suiciding the rear doors since i have the hinges already :)

please post some feedback or suggestions as i go along and enjoy!!

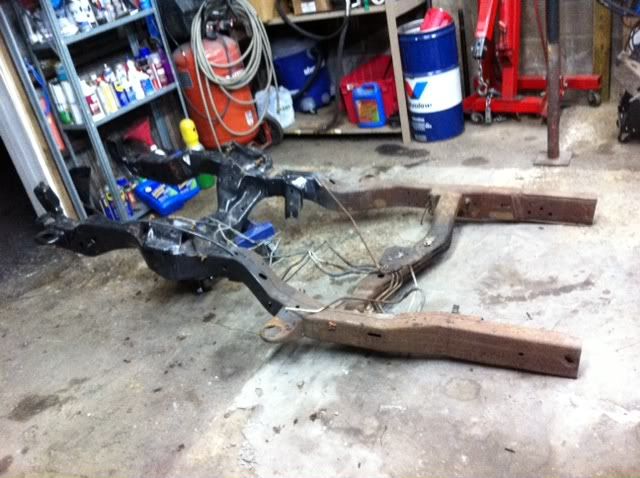

the long bed truck after being stripped
the donor front clip

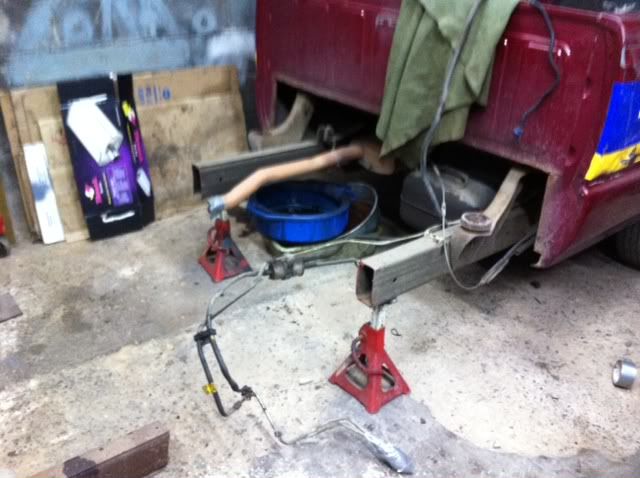

first cut
the cab is here!

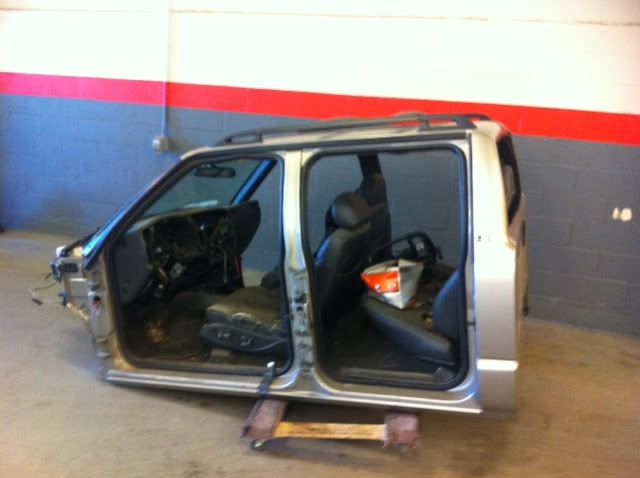

vacuumed it n cleaned it really quick

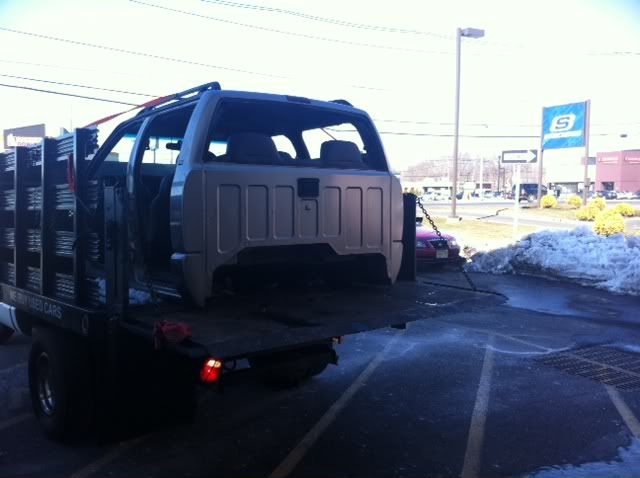

taking it to my garage

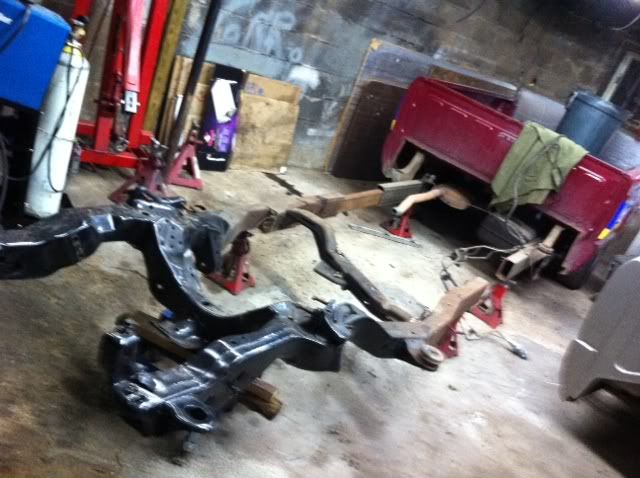

lining up the frame n making the first set of measurments

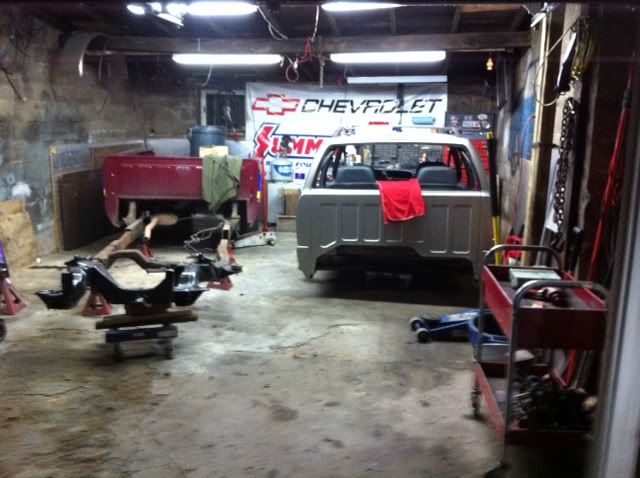

quick shot of the garage full
<<

Something Different

Drop Kit
Drop Kit

Posts: 10

Joined: Thu Sep 11, 2008 8:09 am

Location: Central Jersey

Post Fri Feb 25, 2011 9:49 am

Re: project crew cab daily

Nice score man see ya finally found one ha. What junkyard did you find the parts at? These parts are gettin harder and harder to find...
<<

solowsonoma95

User avatar

DONATING MEMBER

Posts: 67

Joined: Sat Nov 19, 2005 12:56 am

Location: Edison NJ

Post Fri Feb 25, 2011 10:02 am

Re: project crew cab daily

the cab was found at union auto wreckers but they located it for me from another yard and the doors were found at brians used parts in newark all they had left from there cc was the rear doors which i bought lol

what r u looking for anyways?
<<

DowntimeDesigns

User avatar

DONATING MEMBER

Posts: 2377

Joined: Sat Sep 03, 2005 11:35 am

Location: Bel Air, MD

Post Fri Feb 25, 2011 11:28 am

Re: project crew cab daily

I had a similar thought that I wanted to do for a daily. But just Crew Cab and 2wd with a static drop.

Looking forward to seeing it come together man!
<<

Blk210

User avatar

17 Inch Wheels
17 Inch Wheels

Posts: 315

Joined: Sat Mar 08, 2008 11:54 am

Post Sat Feb 26, 2011 10:42 am

Re: project crew cab daily

have wanted to do this since the crews came out, awesome stuff!
FLAT BLACK!! the new pink popped collar shirt!!
<<

getto

User avatar

DONATING MEMBER

Posts: 988

Joined: Mon Sep 24, 2007 12:50 pm

Location: ct

Post Sat Feb 26, 2011 5:55 pm

Re: project crew cab daily

cool shit im watchin,...
<<

solowsonoma95

User avatar

DONATING MEMBER

Posts: 67

Joined: Sat Nov 19, 2005 12:56 am

Location: Edison NJ

Post Sat Feb 26, 2011 9:17 pm

Re: project crew cab daily

not much of an update spent 2 hours on it today after work... painted the front frame section and wire wheels the areas where i will be welding as well as drilled a million holes for spot welding in preparation for the new rail sections which i will be installing monday


<<

Slow01S10

17 Inch Wheels
17 Inch Wheels

Posts: 99

Joined: Sun Sep 06, 2009 8:22 am

Location: Niagara Falls, NY

Post Sun Feb 27, 2011 9:11 am

Re: project crew cab daily

something different with an s10 for a change. good luck on the build. cant wait to see it done
Tony
2001 S10 - typical dime - bagged and 20s
2011 Silverado Z71 ext cab
<<

AfterhoursFab

User avatar

DONATING MEMBER

Posts: 1335

Joined: Tue Mar 01, 2005 3:52 pm

Location: back in NJ

Post Sun Feb 27, 2011 10:21 am

Re: project crew cab daily

true dont sell it until youre done lol
http://www.afterhoursfabrication.com

Direct distributor of Lowrider Depot, Airlift Co, and The Hoffman Group products.
<<

phatfarmer2

User avatar

DONATING MEMBER

Posts: 611

Joined: Tue Aug 14, 2007 12:43 pm

Location: north jersey

Post Sun Feb 27, 2011 1:33 pm

Re: project crew cab daily

needs and xtd cab welded on the back.. lol
G4L
"continuing where the factory left off"
v8, bagged, body dropped, shaved... driven......
